Voltage range (rack mount) | |
HV3 HV4 |
100/110/120 V (±30%) |
Voltage range (wall mount) | |
HV3 HV4 LV4 |
230/240 V (±30%) |
Current range (site configurable) | |
Ib Imax | 1 A to 5 A 1 A to 10 A |
Auxiliary power supply range | |
AC/DC DC | 60 to 240 V AC/DC (±20%) 24 to 48 V DC (±20%) |
Frequency | 50/60 Hz |

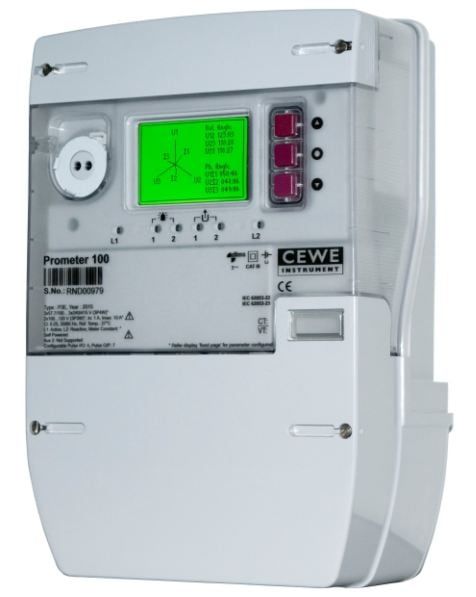

Prometer 100 is a family of high-precision four-quadrant energy meters with advanced measuring, logging, power quality monitoring and data storage capabilities.
Prometer 100 supports flexible and modular communications options enabling integration with existing AMR/AMI/SCADA systems, and provides an upgrade path to future substation automation systems (SAS).
