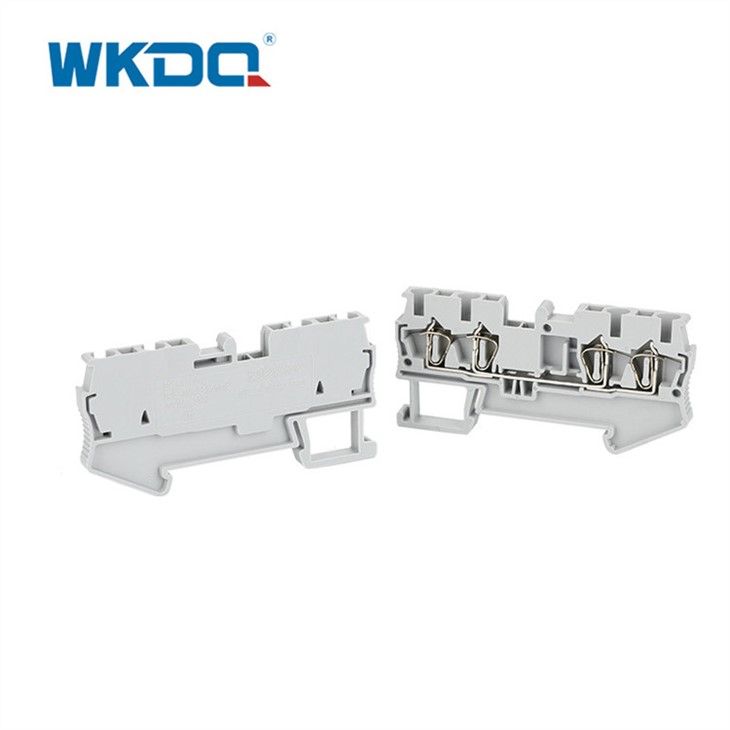

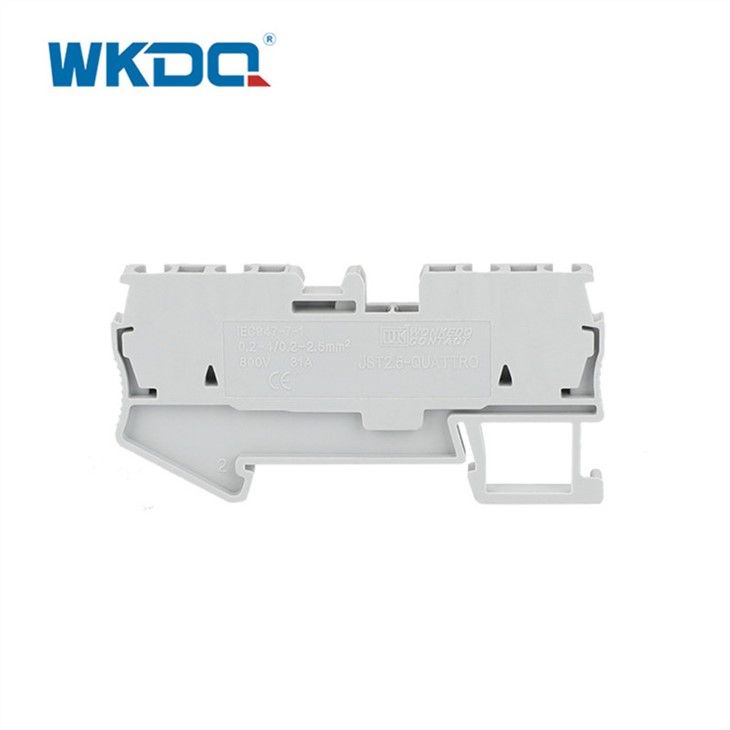

Part No.: JST 2-TWIN
Material: Inflaming retarding PA 66 with nickle plated brass metal
Connection method: Spring connection
Rated Voltage/Current: 800V/41A
Cross Section: 4mm²
Brand Name: WonkeDQ
Material: Inflaming retarding PA 66 with nickle plated brass metal
Connection method: Spring connection
Rated Voltage/Current: 800V/41A
Cross Section: 4mm²
Brand Name: WonkeDQ

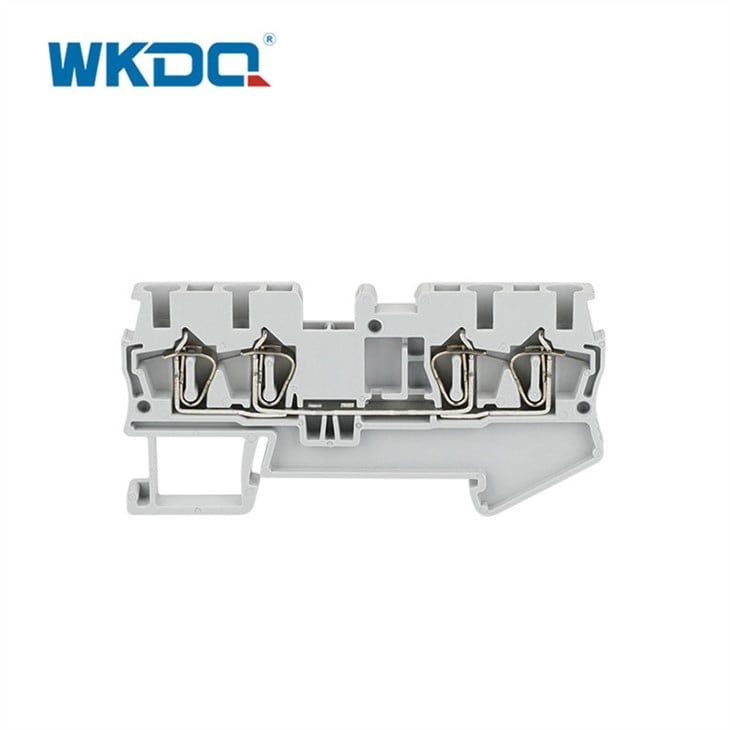

The spring clamp is made from nickel plated steel material and the copper current bar comes with a surface treatment which offers a consistent and stable wiring connection even in vibrating applications. The spring clamp connection also offers a shorter wire installation time and is easy to maintain.
◆ Made from Inflaming retarding PA 66 with nickle plated brass metal
◆ Saving space, the compact design and front connection can save a lot of space.

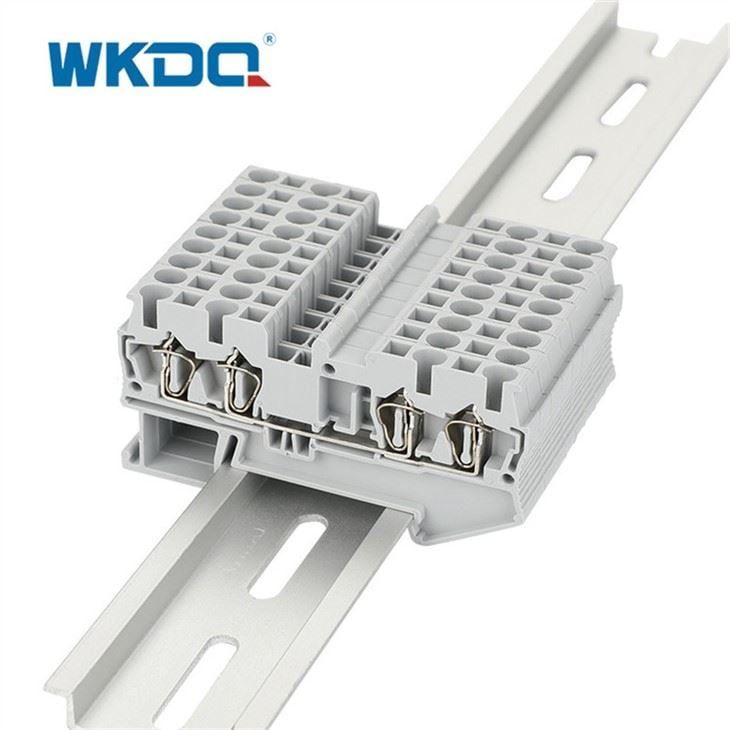

◆ With universal foot which can be installed on Din Rail NS 35.
◆ All types of accessories: End covers, End Stoppers, marker strip, fixed bridge, etc.
