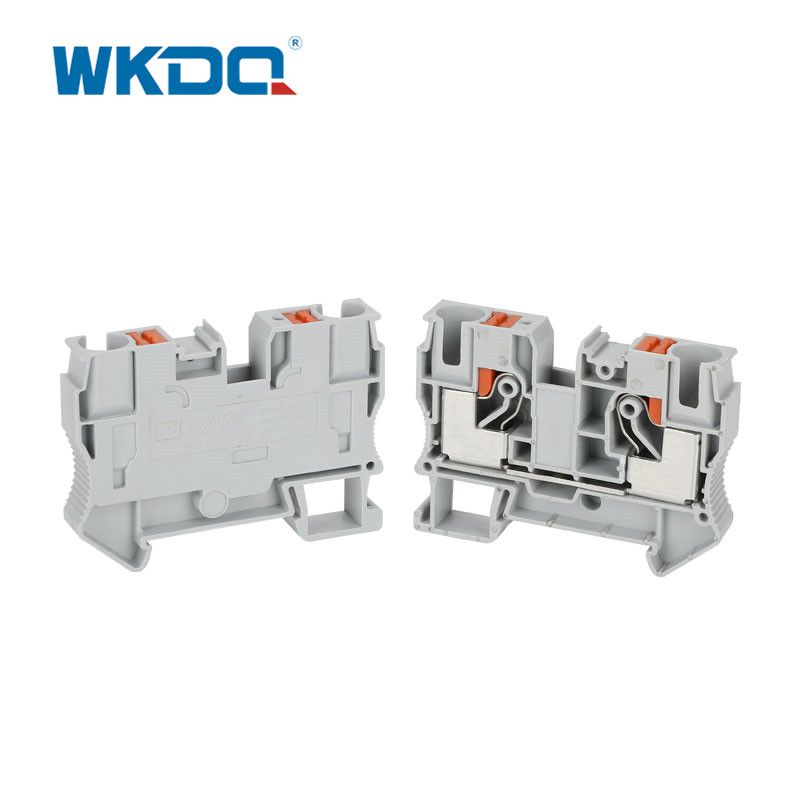

Part No.: JPT 10
Material: Anti Inflaming Nylon PA 66, Brass metal
Connection method: Push in connection
Rated Voltage/Current: 1000V/50A
Cross Section: 10mm²
Brand: WonkeDQ
Material: Anti Inflaming Nylon PA 66, Brass metal
Connection method: Push in connection
Rated Voltage/Current: 1000V/50A
Cross Section: 10mm²
Brand: WonkeDQ
The Push-in direct connection technology make the insertion forces reduced by up to 50 percent and tool-free wiring, enable the conductors to be inserted easily and directly.
◆ Made from anti Inflaming Nylon PA 66, Brass Bar
◆ The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.
◆ The compact design and front connection enable wiring in a confined space.
◆ In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection.
◆ With universal foot which can be installed on Din Rail 35mm.

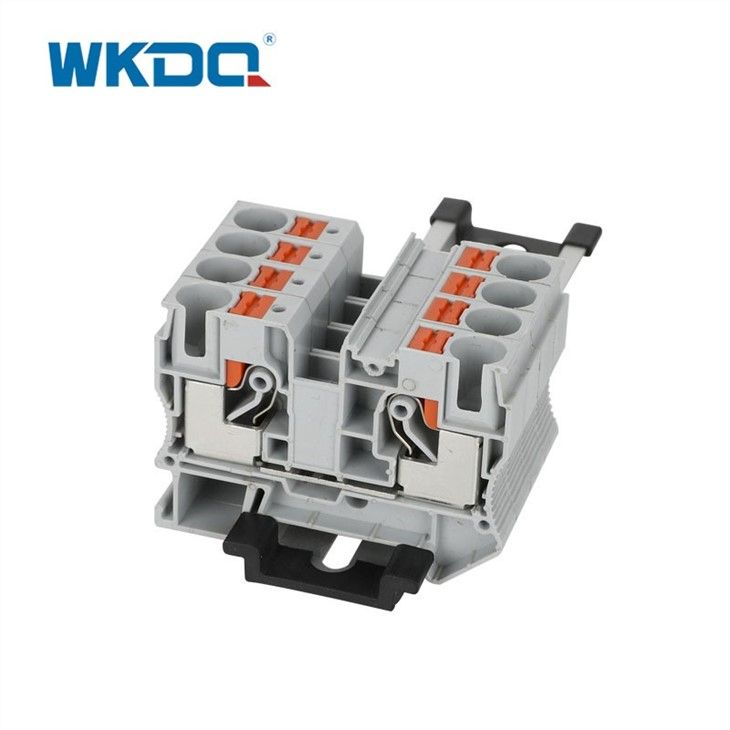

◆ Electric potential distribution can use plug-in bridges in the terminal center.
