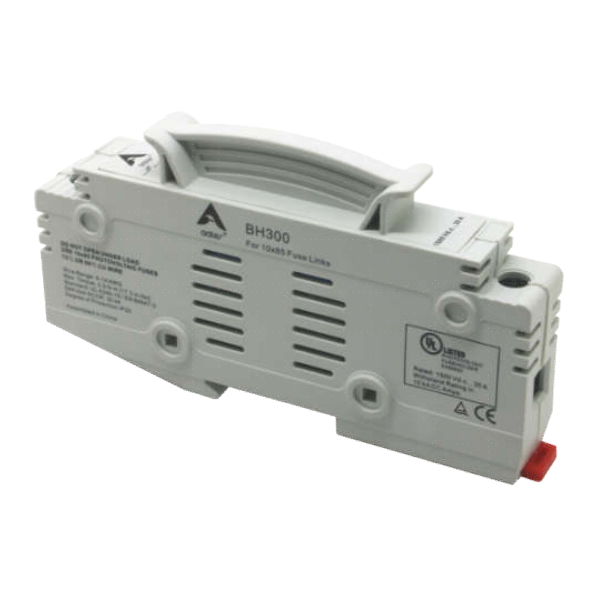

BH300 1500V Fuse Holder

Vendor: Adler
Type: Holder

Name: BH300 1500V Fuse Holder

Hotline: 0989251000
Số lượng


The BH300 touch safe holder is designed for 10x85mm fuse links, especially for use with photovoltaic equipment.


  • Rated Voltage: 1500 VDC
  • Rated Current: up to 30 A
  • Short Circuit Current Rating (SCCR): 50 kA
  • Standards: UL 4248-18, EN 60947-3
  • (30 kA@1500 VDC)
  • Dissipation: 8 W
  • Material Flammability: UL 94-V0
  • Mounting: DIN Rail mounting
  • Wire Range: 6-14 AWG
  • Operation Temperature: -40°C to +150°C


ADLER BH300 touch safe fuse holders are designed for standard 10x85mm PV fuses such as ADLER A75 series and other cylindrical fuses up to Ø10 x 85mm. With current ratings up to 30A at 1500 VDC, it can effectively protect 1500 VDC circuits and equipment in photovoltaic applications.

Note: SCCR is limited to the interrupting rating of the installed fuse or 50kA, which ever is less
