FEATURES:

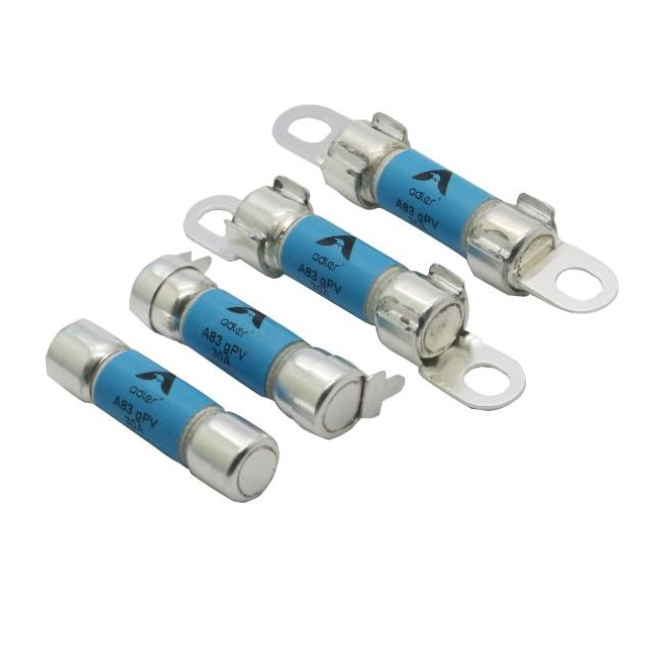

- 1000 / 1100 VDC, 10x38 mm PV fuse link with glass-fiber
- Rated Current: 1-30 A
- Breaking Capacity:30 kA at 1100 VDC(1-20 A),30 kA at 1000 VDC(25-30 A)
- Time Constant: 1-3 ms
- Special design with silver plated caps for high-power PV applications
- Standard: UL 248-19
- Approvals: UL (File: E490190)
- BH100-01, BH100-02 holders for DIN rail mounting
