Cewe Instruments Position Indicators can be connected to
DC or AC voltages between 24 and 230 V. Two voltage
ranges are available.
Connection is made with screw connectors having a max.
connection area of 1.5 mm2.
Indicators for AC voltage
The indicators are made for DC voltage as standard. For
connection to AC voltage a rectifier is connected in the
indicator. The type designation for Position Indicators for
connection to AC voltage is PIR
The Position Indicator is made according to the following
Personal safety EN 61010-1
Category III Table D12 Double isolation.
Max. working voltage 300 V.
IEC 51, EN 50081-1, EN 50082-1,
EN 5008 1-2, EN 50082-2, IEC 473.

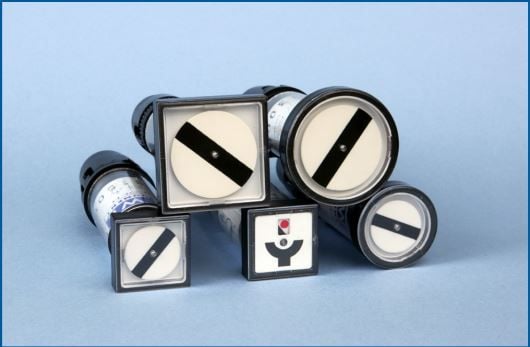

Position Indicators are used to indicate the position of circuit breakers and isolators. Cewe Instrument also produce
special versions of Position Indicators for the indication
of positions of valves. These indicators have type designations RG (RedGreen) and AW (AmberWhite). The Position Indicators are for mounting in instrument panels or in
