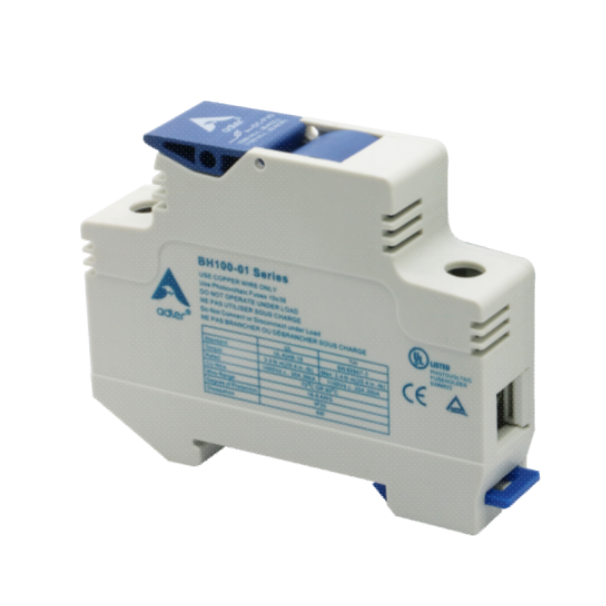

BH100-01 1000V 1100V Fuse Holder

Vendor: Adler
|
Type: Holder
|
0₫

Name: BH100-01 1000V 1100V Fuse Holder

Title
Hotline: 0989251000
|
Số lượng

- DESCRIPTION:

BH100-01 touch safe holders are designed for 10x38mm DC midget fuses, especially for use with photovoltaic equipment.

- FEATURES:

ADLER BH100-01 touch safe fuse holders are designed for all standard 10x38mm PV fuses such as ADLER A73 / A83 series.

Note: SCCR is limited to the interrupting rating of the installed fuse or 30kA, which ever is less.

- SPECIFICATIONS:

  • Rated Voltage: 1000 VDC / 1100 VDC
  • Rated Current: up to 30A / 32A
  • Short Circuit Current Rating(SCCR):
  • DC 30kA@1000VDC / 20kA@1100VDC
  • Standards: UL 4248-18, EN 60947-3
  • Wire Range: 18 - 8 AWG
  • Torque: 3.4 N·m
  • Dissipation: 6 W
  • Operation Temperature: -40℃ to +130℃
  • Material Flammability: UL 94-V0
  • Mounting: DIN Rail mounting
  • Degree of protection IP20
