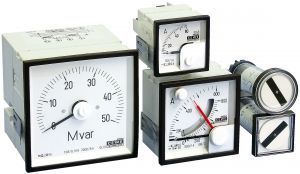

ANALOG METER

• Moving coil – measure DC current and voltage in control panels and industrial applications
• Moving coil instruments with built in rectifier –  measure sinusoidal AC current and voltage
• Moving iron – measure AC current or AC voltage.  Suitable for both direct or CT/VT connected applications in electrical distribution/transmission and generation panels
• Bi-metal/Moving iron bi-metal - to monitor the thermal loading of transformers, motors, cables etc.
• Analogue Watt/VAr meter - indicate active and reactive power
• Analogue frequency meter - analog indication of frequency
• Analogue cos phi meter - indicate power factor

• Panel mounting
  • Easy installation in panels
  • Protection cover included
  • Flexible terminals for fast and safe connection
  • Unbreakable front glass

• Accuracy Class defined in IEC 60051-1

• WideProductRange
  • AC Voltage & Current
  • DC Voltage & Current
  • Active & Reactive Power
  • Power Factor & Frequency
