FEATURES:

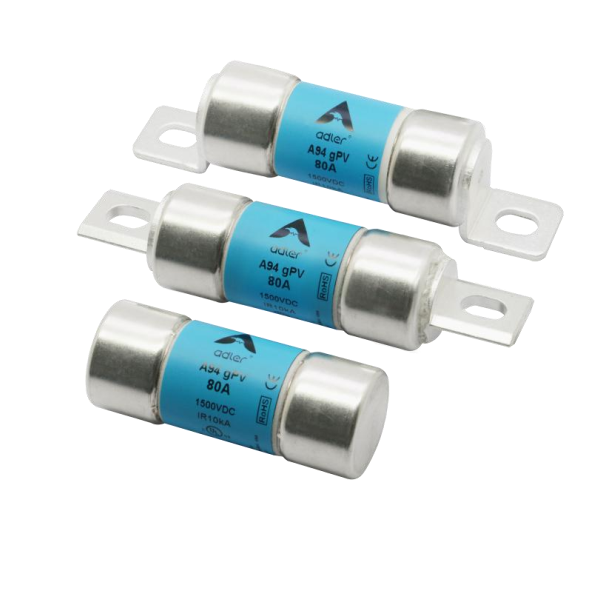

- 1500 VDC, 22x58 mm PV fuse link with glass-fiber body
- Rated Current: 1-80 A
- Breaking Capacity: 10 kA at 1500 VDC (1-65 A) 10 kA at 1300 VDC (70 A, 80 A)
- Time Constant: 1-3 ms
- Special design with silver plated caps for high-power PV applications
- Standard: UL 248-19; IEC 60269-6
- Approvals: UL (File: E490190)
- BH400, BH401 holders for DIN rail mounting
- Customizable for special applications
