FEATURES:

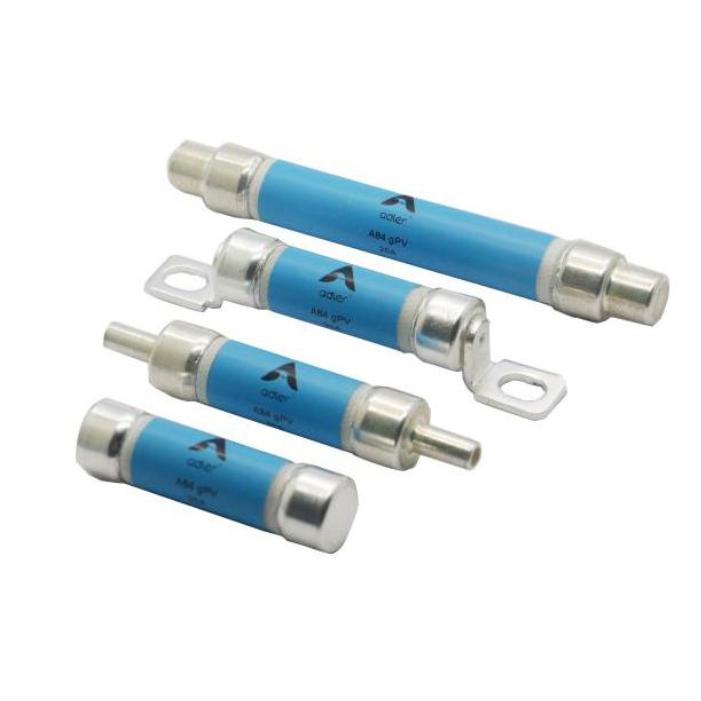

- 1500 VDC, 14x51 mm PV fuse link with glass-fiber body
- Rated Current: 1-32 A (regular use), 1-50 A (single mount inline fuse)
- Breaking Capacity: 10 kA at 1500 VDC
- Time Constant: 1-3 ms
- Special design with silver plated caps for high-power PV applications
- Approvals: UL248-19 (File: E490190)
- Comply to: IEC 60269-6/GBT 13539.6
- Customizable for special application
